Safe Specimen Handling Begins with the Right Grossing Station

In every Histopathology laboratory, the grossing station is where the diagnostic journey begins. Before tissue processing, embedding, sectioning, or staining can take place, specimens must first be examined, described, dissected, and documented accurately.

A well-designed grossing station does far more than provide a work surface. It contributes to operator safety, formalin fume control, workflow efficiency, specimen traceability, ergonomic comfort, and diagnostic quality.

ISTOS Medical's LABGROSS Grossing Station range has been developed to support laboratories of varying sizes—from compact diagnostic centers to high-volume hospital pathology departments. With integrated ventilation, stainless-steel construction, LED illumination, documentation support, and workflow-focused design, LABGROSS stations help laboratories create safer and more efficient specimen handling environments.

Understanding the LABGROSS Range

4.5 ft Tabletop Grossing Station (Without Sink)

Best suited for:

  • Small pathology laboratories
  • Diagnostic centers
  • Satellite laboratories
  • Space-constrained installations

The 4.5 ft tabletop model is designed for laboratories that require professional grossing capabilities within a limited footprint. Without an integrated sink, it offers flexibility for facilities where plumbing connections are already available nearby.

Advantages:

  • Compact footprint
  • Easy installation
  • Lower infrastructure requirements
  • Suitable for low to moderate specimen volumes
  • Cost-effective solution for emerging laboratories

Recommended Room Size:

  • Minimum room area: 80–100 sq ft
  • Minimum wall length: 6 ft
  • Recommended operator clearance: 3 ft in front

5 ft LABGROSS Grossing Station

Best suited for:

  • Routine hospital laboratories
  • Independent pathology centers
  • Medium-volume specimen handling

The 5 ft model represents the most commonly selected configuration for routine Histopathology workflows. It provides an integrated sink, ventilation system, grossing area, and sufficient workspace for specimen documentation.

Advantages:

  • Balanced footprint and productivity
  • Comfortable single-operator workflow
  • Integrated rinsing and drainage system
  • Excellent choice for growing laboratories

Recommended Room Size:

  • Minimum room area: 120–150 sq ft
  • Recommended clearance: 3 ft front access
  • 1.5–2 ft side clearance
  • Rear ventilation access where required

6 ft LABGROSS Grossing Station

Best suited for:

  • High-volume diagnostic laboratories
  • Medical college pathology departments
  • Multi-pathologist facilities

The 6 ft workstation offers a larger working surface, allowing easier handling of larger surgical specimens and improved organization of grossing tools, cassettes, and documentation systems.

Advantages:

  • Larger specimen handling area
  • Enhanced workflow organization
  • Additional storage possibilities
  • Improved ergonomics for extended use

Recommended Room Size:

  • Minimum room area: 150–180 sq ft
  • Recommended workstation zone: 8 ft × 8 ft dedicated workspace

8 ft Dual Grossing Station

Best suited for:

  • Large hospitals
  • Cancer centers
  • High-throughput Histopathology laboratories

The 8 ft dual station allows two operators to work simultaneously. This significantly improves specimen throughput while maintaining safe separation between work zones.

Advantages:

  • Dual-user operation
  • Improved turnaround time
  • Reduced bottlenecks during peak specimen loads
  • Efficient use of available laboratory space

Recommended Room Size:

  • Minimum room area: 220–250 sq ft
  • Recommended operational zone: 10 ft × 10 ft

9 ft Dual Grossing Station

Best suited for:

  • Centralized pathology laboratories
  • Academic medical centers
  • Reference laboratories
  • Multi-specialty hospital networks

The 9 ft dual station represents the highest-capacity configuration within the LABGROSS portfolio. It provides extensive workspace, superior operator separation, and optimized specimen handling for demanding environments.

Advantages:

  • Maximum workflow capacity
  • Dedicated work areas for two users
  • Superior organization of instruments and documentation
  • Supports high daily specimen volumes

Recommended Room Size:

  • Minimum room area: 250–300 sq ft
  • Recommended operational zone: 12 ft × 10 ft

Ventilation and Safety Considerations

One of the most important aspects of grossing station installation is proper ventilation.

LABGROSS systems are designed with ventilation solutions that help remove formalin vapors from the operator's breathing zone, supporting safer daily operation. Features include:

  • Backdraft exhaust systems
  • Optional downdraft extraction
  • Ventilation connectivity to central exhaust systems
  • Splash protection screens
  • LED task lighting
  • Chemical-resistant stainless-steel construction
  • Integrated sink and drainage systems (model dependent)

Installation Recommendations

For optimal safety:

  • Position stations close to the laboratory exhaust connection.
  • Avoid placing stations directly beneath air-conditioning outlets.
  • Maintain clear airflow paths around extraction points.
  • Ensure adequate fresh-air replacement within the room.
  • Allow maintenance access to ventilation components.

Optimizing Workflow Efficiency

The grossing station should never be viewed as a standalone piece of equipment. It should be positioned as part of the complete Histopathology workflow.

Recommended Workflow Sequence

Specimen Receiving
↓
Grossing Station
↓
Cassette Printing
↓
Tissue Processing
↓
Embedding
↓
Microtomy
↓
Staining
↓
Reporting

Proper positioning reduces:

  • Operator movement
  • Specimen handling time
  • Documentation delays
  • Risk of specimen mix-ups

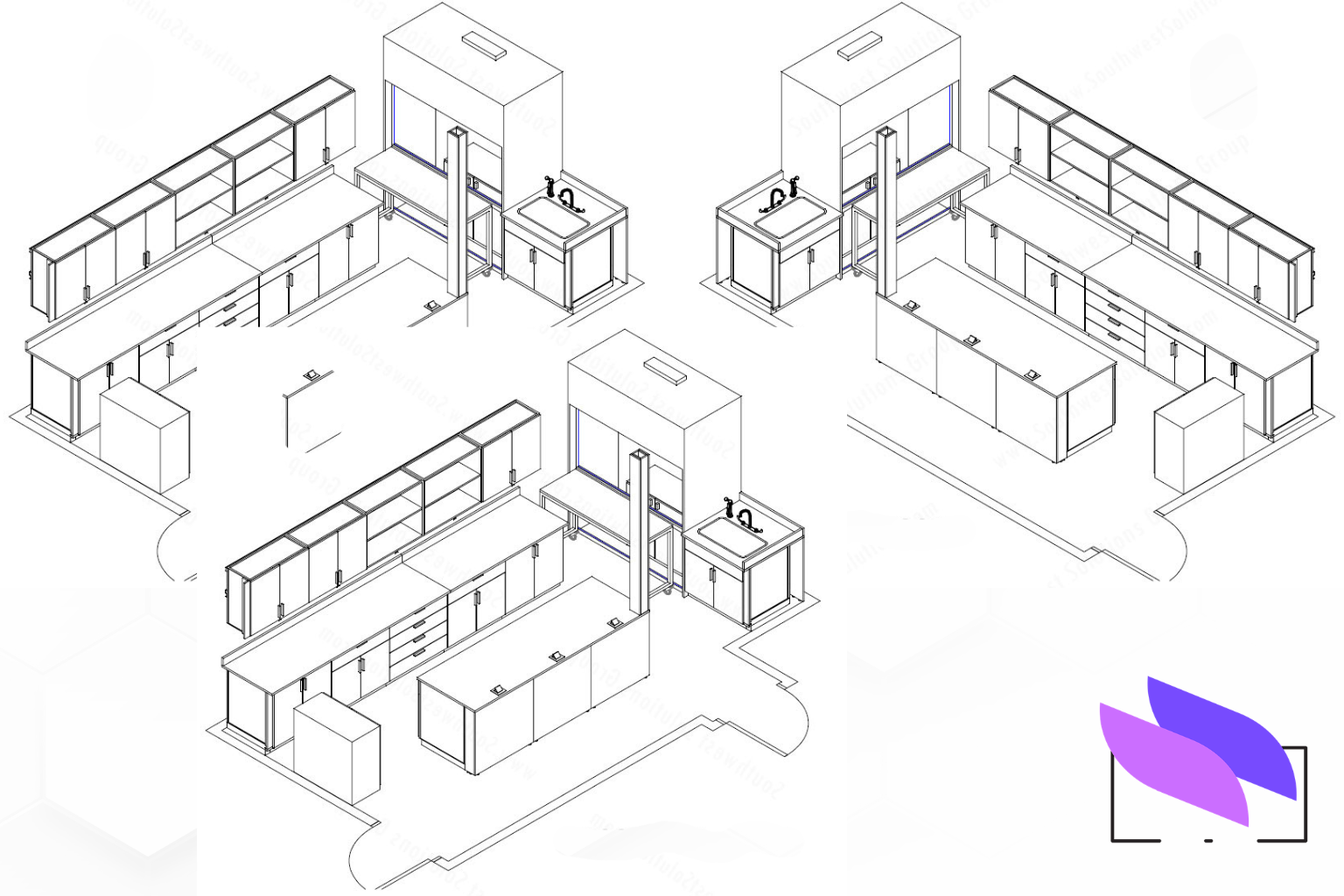

The blueprint image accompanying this article illustrates how different LABGROSS models can be integrated into laboratory layouts while maintaining efficient workflow circulation.

Small Laboratory vs Large Laboratory Recommendations

For Small Laboratories

Recommended Models:

  • ✅ 4.5 ft Tabletop Grossing Station
  • ✅ 5 ft Grossing Station

Ideal for:

  • Independent pathology labs
  • Small hospitals
  • Regional diagnostic centers

Benefits:

  • Lower installation costs
  • Reduced space requirements
  • Efficient single-user operation

For Large Laboratories

Recommended Models:

  • ✅ 8 ft Dual Grossing Station
  • ✅ 9 ft Dual Grossing Station

Ideal for:

  • Medical colleges
  • Large hospital networks
  • Cancer centers
  • Reference laboratories

Benefits:

  • Higher throughput
  • Parallel specimen processing
  • Reduced turnaround times
  • Improved staff productivity

Final Thoughts

Selecting the right grossing station involves more than choosing a workstation size. Laboratories must evaluate specimen volume, available room dimensions, workflow requirements, operator ergonomics, ventilation infrastructure, and future growth plans.

Whether your facility requires a compact 4.5 ft tabletop solution or a high-capacity 9 ft dual-user workstation, the ISTOS LABGROSS range offers scalable options designed around safety, efficiency, and long-term reliability.

At ISTOS Medical, we work closely with laboratory managers, architects, hospital administrators, and pathology teams to help design grossing environments that support both diagnostic excellence and operator safety.
